Unionville
A heritage conservation district can place real importance on exterior divisions, material appearance and alteration guidance. Verify the address and current requirements before changing the visible pattern of an opening.[2]
Markham heritage-to-contemporary planning
Markham windows and doors with sightlines that belong to the house.
Markham moves from Unionville’s heritage fabric to formal Angus Glen elevations and newer contemporary openings. The common task is disciplined composition: align what should align, preserve character where it matters and use glass deliberately rather than treating every opening as an isolated purchase.
01Heritage context checked02Fixed and operable sightlines coordinated03Door glass chosen for day and night
Many design languages
Heritage villages and planned communities require different kinds of restraint.
Markham’s official planning framework identifies established communities, heritage districts and area-specific growth plans. That variety supports very different architectural expressions, but each replacement still needs a coherent relationship among frame lines, glass divisions, entrance proportions and surrounding material.[1][2][3]
The practical approach is to identify the dominant visual rule of the house—historic sash rhythm, symmetrical elevation, narrow contemporary profiles or a glass-forward entrance—then test every proposed unit against it.
Angus Glen
Formal façades benefit from coordinated head heights, grille logic and a clear entrance hierarchy. A single mismatched replacement can be more obvious when surrounding openings are strongly ordered.[3]
Cachet
Custom homes may mix stone, brick and shaped openings. Measure the actual perimeter and avoid shrinking glass merely to simplify an irregular finish transition.[1]
Cathedraltown
Townhouse and planned-community exteriors can involve shared design expectations. Confirm ownership and visible-change rules before selecting colour or grille changes.[3]
Bayview Glen and Devil’s Elbow
Larger properties can support broad glass and statement entrances, but the scale should follow the elevation rather than a catalogue maximum.[1]
Sightline discipline
Fixed and operating windows should read as one deliberate family.
When a fixed unit sits beside a slider or casement, align the visible glass and frame where the product system permits. Review the exterior elevation and interior sill together so coordination does not create awkward hardware reach or furniture conflicts.
Match visible glass
Compare glass lines rather than relying only on equal rough-opening dimensions.
Choose grille logic
Use divisions to support the architecture; do not add them independently to each room.
Control frame build-up
Understand how retrofit and full-frame options change clear glass and exterior perimeter width.
Respect shaped openings
Confirm whether a curve or angle is structural, decorative infill or part of the actual unit before ordering.
Frames and entrance glass
See how profile, movement and a narrow lite change the composition.
The selected media compares a fixed casement-profile window, horizontal operation and a controlled vertical band of entrance glass. The images illustrate those choices and are not photographs of Markham installations.
Preserve or rebuild
Installation method affects both the perimeter and the final sightline.
A retained-frame installation can reduce disturbance when the existing frame is sound, but it adds material inside the opening. On a composed façade, that change in glass area should be reviewed visually rather than accepted as an invisible technical detail.
Full-frame replacement permits a more complete perimeter connection and can simplify mismatched earlier work. It also changes interior and exterior finishing, so casing, jambs, masonry or cladding transitions and paint responsibility belong in the written scope.
Heritage check
Confirm designation and applicable guidelines before exterior appearance changes.
Finish sample
Review colour and sheen beside existing brick, stone or trim rather than on a screen alone.
Opening-by-opening notes
Record exceptions where earlier renovations created different depths or trim conditions.
Purposeful comparisons
Four options that solve different visual problems.
This group moves from coordinated fixed glass to horizontal ventilation, controlled entrance daylight and a patio frame that balances two materials.
Casement-Profile Fixed Window
A casement-profile fixed unit helps align non-operating glass with adjacent casements.
- Operation
- Fixed / non-operating
- Frame material
- Vinyl / uPVC

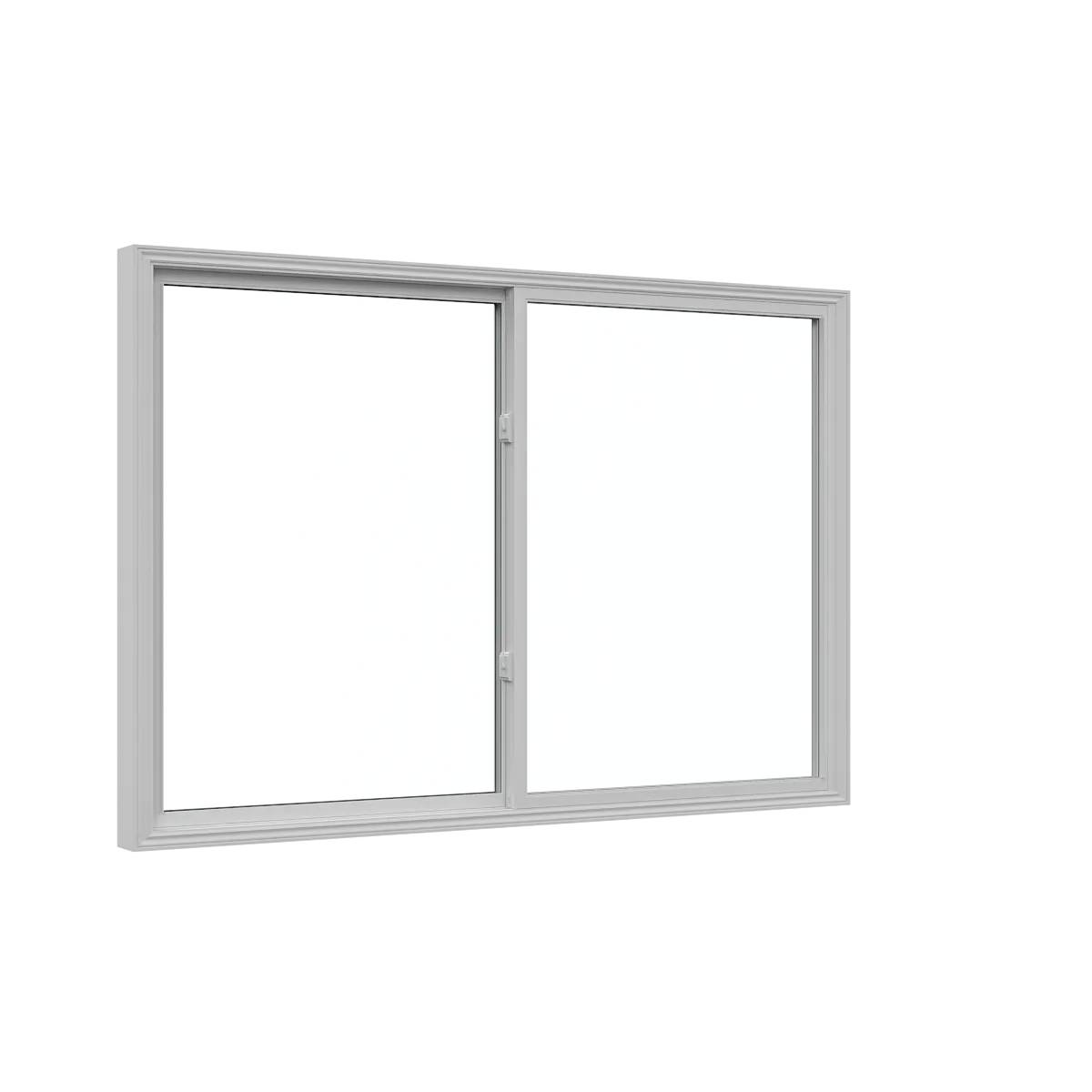

Double Slider Window
A double slider offers ventilation from either side without projecting beyond the exterior wall.
- Operation
- Double horizontal slider
- Frame material
- Vinyl / uPVC
Narrow-Lite Fiberglass Entry Door
A narrow-lite door concentrates daylight in a vertical feature while preserving more opaque slab area.
- Product type
- Exterior entry door
- Material
- Fiberglass
Hybrid Patio Door
A hybrid patio system provides a distinct frame and finish comparison for a broad rear opening.
- Operation
- Sliding patio door
- Frame material
- Hybrid multi-material construction
Glass decisions
Privacy and daylight should be tested in the complete entrance.
Door glass changes with daylight direction, exterior approach and interior lighting. When possible, review the chosen privacy pattern from both sides and in more than one lighting condition. Confirm the exact glass size and compatible slab before relying on a sample image.
For a multi-opening project, approve an elevation schedule that lists operation, grille, frame colour and glass for every unit. This catches an unintended mismatch before manufacturing rather than during installation.
Full-lite versus narrow-lite
Compare privacy, daylight and the amount of solid slab appropriate to the entrance.
Caming and finish
Coordinate metal accents with hardware only where the selected glass actually exposes caming.
Townhouse responsibility
Confirm corporation or shared-exterior rules before visible changes.
Markham questions
Questions about heritage, sightlines and glass.
How do I know whether a Unionville property has heritage requirements?
Check the property against the City of Markham’s heritage resources and current district guidance. Requirements are address- and scope-specific, so do not rely on the neighbourhood name alone.
Can fixed windows match casement sightlines?
Often, if a compatible fixed profile is selected. Compare the actual frame and glass dimensions rather than assuming every fixed unit visually matches an operable one.
Does privacy glass look the same at night?
No. Interior lighting can change contrast and visibility. Review representative glass from both sides and under changing light when possible.
Is a narrow-lite entrance more private than half glass?
It usually reduces the glazed area, but privacy also depends on texture, clear portions, placement and sightlines. Confirm the exact insert rather than judging only by size.
What belongs on a window elevation schedule?
Include unit reference, dimensions, operation, handing, glass, grille, exterior colour, interior finish and installation notes for each opening.
Plan a Markham elevation
Coordinate sightlines before locking in individual units.
Send a full-elevation photograph and note any heritage or shared-exterior rules. We can then narrow suitable window, entrance and patio directions for measurement.
