Operating and fixed configurations

Window styles and where they fit.

Window style determines how the sash moves, where ventilation enters, how the screen is positioned and what clear opening remains. The useful choice comes from the room, reach, exterior access and desired view—not a style name alone.

Plan your replacement Read the guide

White awning replacement window open from the bottom

A representative replacement window configuration. The exact product, options and performance details are confirmed in your written quotation.

01Strong visual comparison across major styles02Ventilation and cleaning explained03Opening geometry and screen placement considered04Links to representative product configurations

At a glance

Start with a clear project scope.

Operating windows provide ventilation and may need to meet egress or safety requirements. Fixed windows prioritize glass area and can be combined with operating units. Projecting bay and bow assemblies add structure and finishing considerations beyond a flat window.

The visual examples below show representative window configurations. They demonstrate operation and proportion without promising the exact product, grille, colour or configuration for a future quotation.

Hinged operation

Casement and awning windows use compression-style closing.

Casements hinge at the side and project outward, often providing a broad opening and strong ventilation. Screens are generally on the interior. The projecting sash needs exterior clearance and hardware access should suit the room.

Awnings hinge at the top and open outward from the bottom. They can provide controlled ventilation in compact openings and combinations. Like casements, they require exterior clearance and rely on operators and seals maintained in adjustment.

Casement

Useful for broad ventilation, compression sealing and clear views; consider reach, exterior clearance and interior screen location.

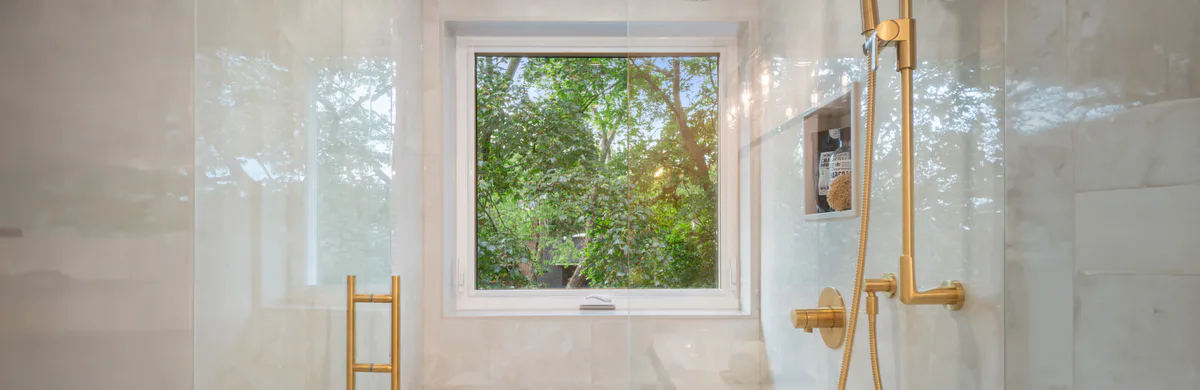

Awning

Useful for lower or higher placements and combinations; consider exterior projection, operator access and drainage.

Sashes within the frame

Hung and slider windows ventilate without projecting outward.

Single- and double-hung windows move vertically. A double-hung configuration allows both sashes to move where supported, which can aid ventilation and cleaning. Balance systems, meeting rails and sill conditions affect operation.

Single and double sliders move horizontally and can suit wider openings where exterior projection is undesirable. End-vent sliders place operating sashes around a fixed centre section, creating balanced ventilation across a wider opening.

Single hung

One moving sash with a fixed companion; familiar vertical proportions and no exterior projection.

Double hung

Two moving sashes where configured; review cleaning access, balance operation and clear opening.

Single slider

One horizontal operating sash and one fixed section; simple movement for wider openings.

Double slider

Two horizontal operating sashes; consider screen layout, cleaning and meeting-rail sightlines.

End-vent slider

Operating end sashes around a fixed centre; useful for wide openings, subject to measured configuration.

Daylight and views

Picture and fixed windows do not open.

Picture windows use a non-operating frame direction intended for glass area and views. Fixed units can also use frame profiles coordinated with adjacent operating windows so sightlines align more closely.

Fixed glazing avoids operating hardware and seals, but ventilation must be provided elsewhere where needed. Large glass sizes affect handling, safety requirements, solar exposure and structural support.

Picture window

Prioritizes glass area, daylight and view; useful alone or within larger combinations.

Casement-profile fixed

Uses a deeper profile direction to coordinate with adjacent casement or awning frames.

Slim fixed

Uses a narrower visual profile where the selected system and opening support it.

Larger assemblies

Bay, bow and architectural windows need project-specific review.

Bay windows project in angular sections, while bow windows use several units to create a gentler curve. Both affect structure, roofing or head conditions, exterior finishing and interior seat or jamb work. They should not be treated as a standard flat-window swap.

Architectural shapes, bay and bow assemblies, and custom combinations can solve distinctive openings, but operation, mullions, support, glass size and finish interfaces must be designed together.

Technical and configuration details

Window styles and where they fit.: construction and configuration details.

Each visual explains a specific detail relevant to window styles and where they fit.. Captions identify its practical limits.

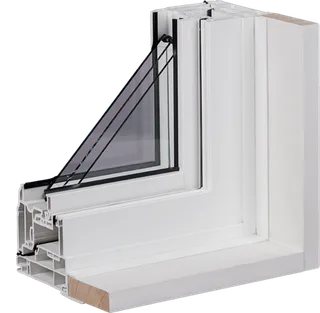

Representative casement frame and insulated-glass profile. Final frame and glazing construction are confirmed for the quoted window.

Representative frame profile shared across reviewed sliding and hung configurations. It is not a retrofit wall cutaway.

Representative fixed-window frame and insulated-glass profile for comparing non-operating construction.

Product examples

Product configurations related to window styles and where they fit..

Explore common configurations, then confirm the exact product, performance ratings and warranty in your written quotation.

White slim-frame casement replacement window

Replacement windowReference WRP-W001

Slim-Frame Casement Window

A side-hinged vinyl window that opens outward with a crank and closes against a compression seal. The compact frame direction preserves useful glass area while supporting double- or triple-pane insulated glass choices.

Operation: Casement
Frame material: Vinyl / uPVC
Frame depth: Approximately 3 1/4 in, system dependent

Explore option

White double-hung replacement window with two sliding sashes

Replacement windowReference WRP-W004

Double-Hung Window

A vertically sliding window with two operating sashes for flexible upper and lower ventilation. The operation is useful where an outward-projecting sash would interfere with a walkway, deck or planting.

Operation: Double hung
Frame material: Vinyl / uPVC
Glazing: Double- or triple-pane insulated glass options

Explore option

White double slider replacement window with two operating sashes

Replacement windowReference WRP-W006

Double Slider Window

A horizontal window with two sliding sashes, allowing ventilation from either side without projecting indoors or outdoors.

Operation: Double horizontal slider
Frame material: Vinyl / uPVC
Glazing: Double- or triple-pane insulated glass options

Explore option

Large white fixed picture replacement window

Replacement windowReference WRP-W008

Picture Window

A non-operating window intended to provide uninterrupted daylight and views without ventilation hardware. The fixed sash can stand alone or be coordinated with casement, hung or slider units in a larger composition.

Operation: Fixed / non-operating
Frame material: Vinyl / uPVC
Glazing: Double- or triple-pane insulated glass options

Explore option

Replacement windowReference WRP-W009

Casement-Profile Fixed Window

A non-operating window built to coordinate visually with adjacent casement or awning units.

Operation: Fixed / non-operating
Frame material: Vinyl / uPVC
Frame depth: Approximately 3 1/4 in, system dependent

Explore option
