Fixed windows for daylight and views

Picture windows

Picture windows are non-operating glazed units designed to provide daylight and a broad view without ventilation hardware.

Plan your replacement Compare the details

Large white fixed picture replacement window

A representative replacement window configuration. The exact product, options and performance details are confirmed in your written quotation.

01A fixed sash or direct-set glass area can create cleaner sightlines, but frame construction and visible glass still vary by system.02There is no movable sash for everyday ventilation, so room-air needs must come from adjoining operable windows or another planned source.03Large insulated-glass units become heavier and require suitable framing, handling, support and access; exact size limits belong to the selected system.

At a glance

What homeowners should know about picture windows.

Picture windows are non-operating glazed units designed to provide daylight and a broad view without ventilation hardware. A fixed sash or direct-set glass area can create cleaner sightlines, but frame construction and visible glass still vary by system. There is no movable sash for everyday ventilation, so room-air needs must come from adjoining operable windows or another planned source.

Large living areas, stair landings and window combinations can use picture glass where view and daylight matter more than opening operation. Selection begins with the room, opening geometry and access rather than a style name alone. The measured quotation should identify operation, overall size, glass, finish, hardware and installation scope together.

Operation and use

How picture windows work.

There is no movable sash for everyday ventilation, so room-air needs must come from adjoining operable windows or another planned source. Large living areas, stair landings and window combinations can use picture glass where view and daylight matter more than opening operation.

Large insulated-glass units become heavier and require suitable framing, handling, support and access; exact size limits belong to the selected system. Hardware reach, screen position, moving clearances and the relationship to nearby furniture or exterior paths should be checked before sizing is finalized.

No ventilation

A picture window stays closed; plan separate operating sections where airflow is required.

Visible glass

Frame depth and fixed-sash construction affect how much glass remains visible.

Weight and handling

Larger glass packages require a safe installation plan and adequate support.

Combination design

Fixed glass can be centred or paired with casement, awning, hung or slider sections.

Room and opening fit

Where picture windows work well.

Large living areas, stair landings and window combinations can use picture glass where view and daylight matter more than opening operation. The useful answer depends on sill height, reachable hardware, desired ventilation, view, privacy and the amount of wall available around the unit.

Large insulated-glass units become heavier and require suitable framing, handling, support and access; exact size limits belong to the selected system. Building-code requirements, including egress where applicable, depend on the final clear opening, hardware and local project conditions; a style label alone does not establish compliance.

Glass, frame and finish

Choose picture windows glass, frame and finish together.

Compare direct-set and fixed-sash directions, narrow or deeper frames, mullions, grilles, specialty shapes, double or triple glazing, coatings and safety glass where needed. Pane count by itself does not establish whole-window performance, so the exact glass package and documented values should be compared for the quoted size and operation.

Sightlines, glass-to-frame proportion, grille alignment, interior trim and exterior capping have an outsized effect on a large fixed opening. Colour, grille pattern, screen, hardware and adjoining fixed or operating units should be coordinated from both the interior and exterior elevations.

Frame direction

Compare direct-set, fixed-sash and casement-profile fixed construction.

Glazing

Confirm pane count, coatings, spacer, thickness and documented ratings for the exact size.

Grilles and colour

Use grille lines and finishes that fit the elevation without interrupting the desired view.

Operating companions

Select adjoining sash styles based on ventilation, reach and exterior clearance.

Replacement scope

Plan picture windows installation around the existing opening.

Measure the rough opening and support conditions carefully, especially when replacing a large unit or combining fixed glass with operating flanks. A retrofit approach may be reasonable only when the retained frame is sound, correctly shaped and suitable for the new unit. Full-frame work exposes more of the perimeter and can address frame condition, opening size and finishes more completely.

Sightlines, glass-to-frame proportion, grille alignment, interior trim and exterior capping have an outsized effect on a large fixed opening. The written scope should state removal limits, perimeter insulation, interior air sealing, exterior water management, trim or capping, disposal, adjustment and final finishing.

01
Assess and measure
Confirm the picture windows opening dimensions, frame condition, access, clearances and intended operation before selecting the final configuration.
02
Specify the assembly
Record the picture windows frame, glass, hardware, screen, finish, mullions and adjoining units so the components are compatible.
03
Define the finish
Identify the picture windows removal, sealing, water-management and interior/exterior finish work rather than leaving the perimeter ambiguous.

Technical and configuration details

Picture windows: construction and configuration details.

Each visual explains a specific detail relevant to picture windows. Captions identify its practical limits.

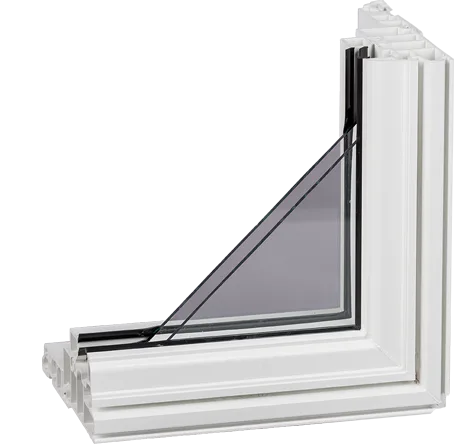

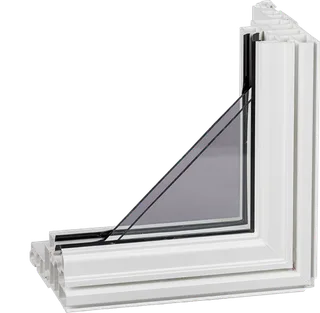

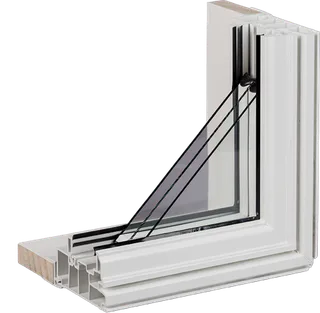

Representative fixed-window frame and insulated-glass profile for comparing non-operating construction.

Product examples

Product configurations related to picture windows.

Explore common configurations, then confirm the exact product, performance ratings and warranty in your written quotation.

Replacement windowReference WRP-W009

Casement-Profile Fixed Window

A non-operating window built to coordinate visually with adjacent casement or awning units.

Operation: Fixed / non-operating
Frame material: Vinyl / uPVC
Frame depth: Approximately 3 1/4 in, system dependent

Explore option

Replacement windowReference WRP-W010

Slim Fixed Window

A fixed vinyl window using a slimmer perimeter profile to increase visible glass area where ventilation is not required. It can serve as a standalone daylight opening or form part of a larger composition.

Operation: Fixed / non-operating
Frame material: Vinyl / uPVC
Frame depth: Approximately 3 1/4 or 4 1/2 in

Explore option

White slim-frame casement replacement window

Replacement windowReference WRP-W001

Slim-Frame Casement Window

A side-hinged vinyl window that opens outward with a crank and closes against a compression seal. The compact frame direction preserves useful glass area while supporting double- or triple-pane insulated glass choices.

Operation: Casement
Frame material: Vinyl / uPVC
Frame depth: Approximately 3 1/4 in, system dependent

Explore option

Plan your replacement

Start with the opening you need to replace.

Compare suitable options, confirm the site measure and receive a written scope for product supply, installation and finishing.
