Horizontal sliding patio systems

Sliding patio doors

Sliding patio doors move one or more panels horizontally along a sill, avoiding the floor-space swing of a hinged door.

Plan your replacement Compare the details

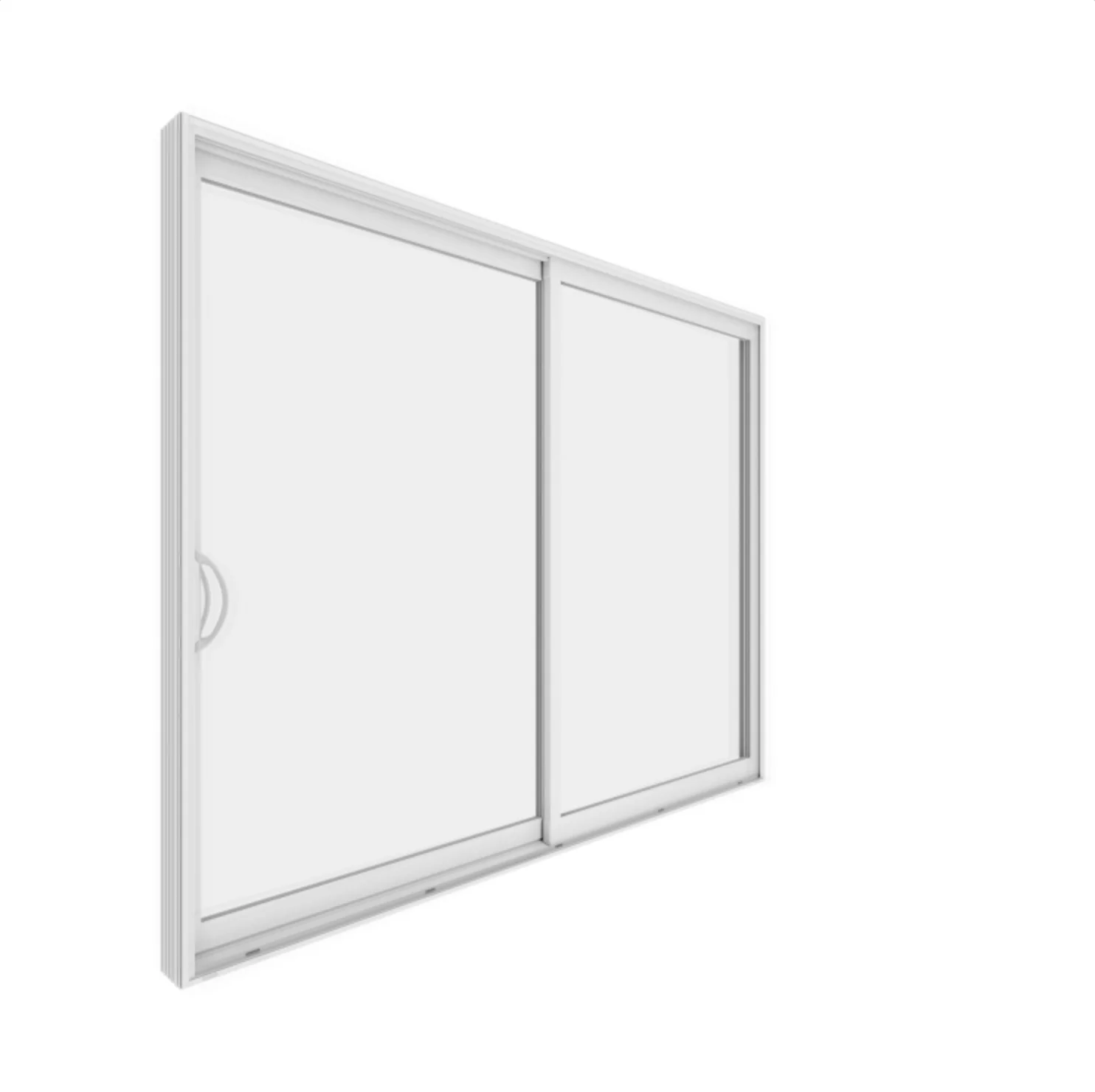

A representative patio door configuration. The exact product, options and performance details are confirmed in your written quotation.

01Two-, three- and four-panel layouts can divide the opening differently, so panel count and clear passage are not the same measurement.02Rollers, tracks, interlocks, handles and locks guide and secure the moving panel while fixed or companion panels complete the assembly.03Panel weight, sill level, screen travel, clear opening, drainage and structural limits must be evaluated for the exact layout.

At a glance

What homeowners should know about sliding patio doors.

Sliding patio doors move one or more panels horizontally along a sill, avoiding the floor-space swing of a hinged door. Two-, three- and four-panel layouts can divide the opening differently, so panel count and clear passage are not the same measurement. Rollers, tracks, interlocks, handles and locks guide and secure the moving panel while fixed or companion panels complete the assembly.

Deck, garden and balcony openings may suit a slider where furniture placement and circulation benefit from operation within the wall plane. Selection begins with the room, opening geometry and access rather than a style name alone. The measured quotation should identify operation, overall size, glass, finish, hardware and installation scope together.

Operation and use

How sliding patio doors work.

Rollers, tracks, interlocks, handles and locks guide and secure the moving panel while fixed or companion panels complete the assembly. Deck, garden and balcony openings may suit a slider where furniture placement and circulation benefit from operation within the wall plane.

Panel weight, sill level, screen travel, clear opening, drainage and structural limits must be evaluated for the exact layout. Hardware reach, screen position, moving clearances and the relationship to nearby furniture or exterior paths should be checked before sizing is finalized.

Panel plan

Arrows and handing determine which panel moves and where the clear passage occurs.

Frame material

PVC, aluminum and hybrid systems differ in profile, reinforcement, thermal design and finish.

Glass and screen

Large glass area, screen position and everyday passage should be considered together.

Sill and lock

Track support, drainage, rollers, interlocks and locking hardware affect operation.

Room and opening fit

Where sliding patio doors work well.

Deck, garden and balcony openings may suit a slider where furniture placement and circulation benefit from operation within the wall plane. The useful answer depends on sill height, reachable hardware, desired ventilation, view, privacy and the amount of wall available around the unit.

Panel weight, sill level, screen travel, clear opening, drainage and structural limits must be evaluated for the exact layout. Building-code requirements, including egress where applicable, depend on the final clear opening, hardware and local project conditions; a style label alone does not establish compliance.

Glass, frame and finish

Choose sliding patio doors glass, frame and finish together.

Compare two-panel and multi-panel plans, handing, PVC, aluminum or hybrid frames, insulated glass, internal finishes, exterior colours, screens and hardware. Pane count by itself does not establish whole-window performance, so the exact glass package and documented values should be compared for the quoted size and operation.

Interior casing, flooring, exterior trim, sealants and drainage paths should meet the frame without blocking its designed weep system. Colour, grille pattern, screen, hardware and adjoining fixed or operating units should be coordinated from both the interior and exterior elevations.

Two-panel

A direct residential layout with one principal passage direction.

Multi-panel

Three- or four-panel arrangements divide wider openings in several ways.

Glazing

Confirm coatings, pane count, safety glass and documented performance for the full door.

Hardware and finish

Coordinate handles, locks, screens, frame colour and threshold details.

Replacement scope

Plan sliding patio doors installation around the existing opening.

Check sill support, level, rough opening, header, water management, floor transition, exterior landing and safe handling before removal. A retrofit approach may be reasonable only when the retained frame is sound, correctly shaped and suitable for the new unit. Full-frame work exposes more of the perimeter and can address frame condition, opening size and finishes more completely.

Interior casing, flooring, exterior trim, sealants and drainage paths should meet the frame without blocking its designed weep system. The written scope should state removal limits, perimeter insulation, interior air sealing, exterior water management, trim or capping, disposal, adjustment and final finishing.

01
Assess and measure
Confirm the sliding patio doors opening dimensions, frame condition, access, clearances and intended operation before selecting the final configuration.
02
Specify the assembly
Record the sliding patio doors frame, glass, hardware, screen, finish, mullions and adjoining units so the components are compatible.
03
Define the finish
Identify the sliding patio doors removal, sealing, water-management and interior/exterior finish work rather than leaving the perimeter ambiguous.

Technical and configuration details

Sliding patio doors: construction and configuration details.

Each visual explains a specific detail relevant to sliding patio doors. Captions identify its practical limits.

Three neutral patio-door panel layouts showing different sliding directions — Representative sliding panel arrangements. Arrows explain movement only; the measured quotation confirms the exact panel plan.

Close view of patio-door locking hardware at the frame — Representative locking hardware detail. Hardware type and finish vary by the selected patio-door system.

Product examples

Product configurations related to sliding patio doors.

Explore common configurations, then confirm the exact product, performance ratings and warranty in your written quotation.

Patio doorReference WRP-P001

Multi-Panel Sliding Patio Door

A horizontal sliding patio-door family available in two-, three- and four-panel layouts.

Operation: Horizontal sliding
Glazing: Double- or triple-pane low-emissivity options
Configurations: Two-, three- and four-panel layouts

Explore option

Patio doorReference WRP-P003

PVC Sliding Patio Door

A sliding patio-door family built around an insulated PVC frame direction. PVC systems are common in residential replacement work and can support different frame depths, glazing packages, panel arrangements and hardware.

Operation: Horizontal sliding patio door
Frame material: PVC / vinyl
Frame depth: System dependent; available options include deeper replacement frames

Explore option
